SQL Injection with SQLMap Tutorial

The widespread use of web applications has increased security vulnerabilities, with SQL injection being one of the most common and devastating. SQL injection occurs when an attacker inserts malicious SQL code into a query, bypassing the intended security measures and gaining unauthorized access to the application’s database. This SQLMap tutorial will delve deep into understanding and exploiting SQL injection vulnerabilities, using the powerful tool SQLMap to automate the detection and exploitation process.

Understanding SQL Injection: An Overview

It is important to have a solid understanding of the basics to detect and exploit SQL injection vulnerabilities effectively. SQL injection occurs when user-supplied data is not properly validated or sanitized before being used in database queries. Instead of inputting legitimate data, an attacker can manipulate the input to alter the intended SQL query, allowing unauthorized access or manipulation of the database.

Section Image

The Basics of SQL Injection

Let’s consider a simple example to illustrate the concept of SQL injection. Imagine a login form where users enter their username and password. The backend code then constructs a SQL query using the provided username and password to check if the user exists in the database. However, if the application does not properly validate or sanitize the input, an attacker could input something like:

Username: admin' --Password: anypassword

In this case, the SQL query constructed by the application would become:

SELECT * FROM users WHERE username = 'admin' --' AND password = 'anypassword'

Notice that the injected code ‘–‘ comments out the rest of the original query, effectively bypassing the password check. The attacker has successfully gained access to the system without knowing the correct password.

The Impact of SQL Injection on Cybersecurity

The consequences of a successful SQL injection attack can be severe, ranging from unauthorized data access and theft to data manipulation or deletion. One real-world example of an SQL injection attack occurred in 2012 when a hacker group targeted Yahoo and accessed the account information of over 450,000 users. The attack was facilitated by a SQL injection vulnerability in a Yahoo service, highlighting the importance of understanding and mitigating these attacks.

SQL injection attacks have been a persistent threat in the cybersecurity landscape for many years. They exploit vulnerabilities in web applications that fail to validate or sanitize user input properly. The consequences of a successful SQL injection attack can be devastating for individuals and organizations that store sensitive data.

SQL injection attacks are so prevalent because they can be executed with relative ease. Attackers can use automated tools to scan websites for potential vulnerabilities, making it a matter of finding a vulnerable site rather than manually crafting complex attacks. This ease of execution makes SQL injection a go-to technique for hackers looking to exploit weaknesses in web applications.

The impact of a successful SQL injection attack can extend beyond the immediate breach. Once an attacker gains unauthorized access to a database, they can potentially use that access to pivot to other systems or escalate their privileges within the network. A single SQL injection vulnerability can open the door to a larger and more damaging attack.

Developers and organizations must prioritize secure coding practices and implement robust input validation and sanitization mechanisms to prevent SQL injection attacks. Regular security audits and penetration testing can also help identify and address vulnerabilities before malicious actors can exploit them.

Introduction to SQLMap

SQLMap is a powerful open-source penetration testing tool specifically designed to automate the process of detecting and exploiting SQL injection vulnerabilities. Developed in Python, SQLMap provides a user-friendly command-line interface, making it accessible to beginner and experienced testers.

What is SQLMap?

SQLMap is an essential tool in the arsenal of any penetration tester or ethical hacker. Its primary purpose is to automate the process of identifying vulnerable parameters and injecting malicious SQL code to assess the security of web applications. SQLMap supports various database systems, including MySQL, Oracle, PostgreSQL, and Microsoft SQL Server.

Key Features of SQLMap

SQLMap offers a wide range of features, making it a comprehensive tool for detecting and exploiting SQL injection vulnerabilities. Some notable features include:

  • Automatic recognition of the vulnerable target
  • Full support for blind SQL injection techniques
  • Ability to retrieve database and table schema information
  • Automatic detection and exploitation of time-based blind SQL injection
  • Support for multiple evasion techniques to bypass security measures

One of the standout features of SQLMap is its ability to recognize the vulnerable target automatically. This means that even if you are unsure which parameters are vulnerable to SQL injection, SQLMap will intelligently scan the target and identify the potential injection points. This saves valuable time and effort, allowing testers to focus on other aspects of the penetration testing process.

In addition to its automatic recognition capabilities, SQLMap also provides full support for blind SQL injection techniques. Blind SQL injection is a type of injection attack where the tester does not receive direct feedback from the application. SQLMap can perform blind SQL injection by using various techniques, such as time delays or boolean-based queries, to extract information from the database.

Another noteworthy feature of SQLMap is its ability to retrieve database and table schema information. This means that testers can gain valuable insights into the structure of the target database, including the names of tables, columns, and their respective data types. This information can be crucial in understanding the underlying data model and formulating effective SQL injection payloads.

SQLMap excels in detecting and exploiting time-based blind SQL injection vulnerabilities. In this technique, the tester manipulates the application’s response time to infer the presence or absence of certain conditions. SQLMap automates this process by injecting time delays into the SQL queries and analyzing the application’s response time, allowing testers to extract sensitive information from the database.

Lastly, SQLMap offers support for multiple evasion techniques to bypass security measures. Web applications often employ various security mechanisms to protect against SQL injection attacks. SQLMap can intelligently evade these measures by utilizing techniques such as randomization of payloads, encoding special characters, and obfuscating SQL queries. This ensures that the tool remains effective even against well-protected applications.

Installing and Setting Up SQLMap

Before we can start using SQLMap, we must install and set it up on our system. This section will guide you through the installation process.

System Requirements for SQLMap

SQLMap is a Python-based tool, so you will need a system with Python installed. Additionally, SQLMap relies on various external libraries, which can be installed using the package manager pip. The following are the system requirements:

  • Python 3.x or above
  • pip (Python package installer)
  • Python libraries: requests, colorama, termcolor, and bs4
  • Database system to test against (e.g., MySQL, Oracle)

Ensuring that your system meets these requirements is essential for a smooth installation and usage of SQLMap.

Step-by-Step Installation Guide

Now, let’s walk through the step-by-step installation process:

  1. Open a terminal or command prompt on your system.
  2. If you haven’t already, install Python 3.x. Visit the official Python website (https://www.python.org) and download the latest version that is compatible with your operating system.
  3. Once Python is installed, open the terminal or command prompt and enter the following command to check if pip is installed:
pip --version

If pip is not installed, don’t worry! You can easily install it by following the official pip installation guide (https://pip.pypa.io/en/stable/installing/), which provides step-by-step instructions for various operating systems.

  1. After ensuring that pip is installed, execute the following command to install SQLMap:
pip install sqlmap

Now, sit back and relax while pip completes the installation process. It may take a few moments, but once it’s finished, you should see a success message indicating that SQLMap has been installed successfully.

With SQLMap successfully installed on your system, you can explore its powerful features and conduct efficient SQL injection tests. Stay tuned for the next section, where we’ll dive deeper into SQLMap’s capabilities and learn how to utilize them effectively.

Detecting SQL Injection with SQLMap

SQLMap is a widely used open-source penetration testing tool that automates the process of detecting and exploiting SQL injection vulnerabilities. It is designed to help security professionals identify and assess the security of web applications.

Running Your First Detection Scan

Before running a detection scan, it is essential to identify the target URL vulnerable to SQL injection. Once you have a potential target in mind, open a terminal or command prompt and execute the following command:

sqlmap -u http://target-url.com/login.php --dbs

Replace “http://target-url.com/login.php” with the actual URL of the login page you want to test. The “–dbs” option tells SQLMap to retrieve the list of databases in the target system.

SQLMap will then thoroughly analyze the provided target URL, searching for SQL injection vulnerabilities. It employs various injection techniques to test the target and provides detailed feedback on its findings.

During the detection scan, SQLMap leverages its extensive database of knowledge about SQL injection vulnerabilities to intelligently and systematically probe the target application. It simulates real-world attack scenarios to identify potential weaknesses malicious actors could exploit.

Interpreting SQLMap Detection Results

Once the detection scan is complete, SQLMap will present the detection results, including the databases on the target system. It will also indicate whether any SQL injection vulnerabilities were detected, providing additional information such as the vulnerability’s risk level and potential impact.

Interpreting the detection results is crucial for understanding the severity of the vulnerabilities and planning further exploitation. SQLMap provides a comprehensive report, outlining the detected vulnerabilities and recommended next steps for exploitation.

It is important to note that SQLMap is a powerful tool that should be used responsibly and with proper authorization. Unauthorized use of SQLMap or any other hacking tool is illegal and unethical. Ensure you have the necessary permissions and legal rights before conducting any security or penetration testing activities.

Exploiting SQL Injection Vulnerabilities with SQLMap

Exploiting SQL injection vulnerabilities can be a daunting task if done manually. SQLMap simplifies this process by offering an automated approach, significantly reducing the effort and time required.

But how exactly does SQLMap accomplish this? Let’s explore the exploitation techniques supported by SQLMap in more detail.

Understanding Exploitation Techniques

SQLMap supports various exploitation techniques, enabling you to extract sensitive data, modify database contents, and even obtain remote command execution on the target system. These techniques provide attackers with a wide range of possibilities.

One of SQLMap’s most common exploitation techniques is information retrieval. This technique extracts database and table structures, usernames, and passwords, which can be incredibly valuable for an attacker seeking unauthorized access to sensitive information.

Another technique is data modification. With SQLMap, you can modify or insert new data into the database. This can be particularly useful for attackers manipulating the system or planting malicious content.

SQLMap also offers command execution, allowing you to execute shell commands on the target system. This opens up a whole new realm of possibilities, allowing attackers to execute arbitrary commands and potentially gain full control over the system.

SQLMap also provides file system access, which allows attackers to read or write files on the target system. This can be a powerful technique for exfiltrating sensitive data or planting malicious files.

Executing an Exploitation Scan

To demonstrate the exploitation capabilities of SQLMap, let’s assume we have identified a vulnerable parameter on a target website. We can use SQLMap to perform an exploitation scan by executing the following command:

sqlmap -u http://target-url.com/vulnerable.php?id=1 --dump

Replace “http://target-url.com/vulnerable.php?id=1” with the actual URL containing the vulnerable parameter. The “–dump” option instructs SQLMap to dump the entire database, extracting valuable information such as usernames and hashed passwords.

By running this command, SQLMap will initiate the exploitation process, exploiting the identified vulnerability and extracting the desired information. This demonstrates the power and efficiency of SQLMap in automating the exploitation of SQL injection vulnerabilities.

Remember, it is important to use tools like SQLMap responsibly and ethically. Ensure you have proper authorization before conducting any security testing or exploitation activities.

Advanced SQLMap Techniques

While SQLMap offers a user-friendly interface for beginners, it also provides advanced techniques for experienced testers. This section explores some of SQLMap’s advanced features to enhance your testing capabilities.

Customizing SQLMap Scans

SQLMap allows you to customize the scanning process by specifying various options and parameters. These options include the aggressiveness level, the scan depth, the number of threads to use, and more. Customizing these settings can help tailor the scan to specific requirements and improve efficiency.

For example, suppose you are conducting a penetration test on a high-traffic website and want to minimize the impact on its performance. In that case, you can set the level of aggressiveness to a lower value. This will ensure that SQLMap performs the scan cautiously, reducing the risk of overwhelming the server and causing disruptions.

SQLMap allows you to specify the depth of the scan, which determines how deep the tool will dig into the website’s structure. By adjusting this parameter, you can focus the scan on specific areas of interest, such as the login page or the database backend, saving time and resources.

Troubleshooting Common SQLMap Issues

SQLMap may encounter issues or errors during a scan, as with any software. Understanding and troubleshooting common issues can help ensure a smooth testing experience. SQLMap provides comprehensive documentation and a community support forum where users can find solutions to common problems.

One common issue that users may encounter is a false positive result, where SQLMap incorrectly identifies a vulnerability. To address this, SQLMap offers various techniques to verify the validity of the reported vulnerability, such as using different payloads or performing manual verification. These techniques can help you differentiate between false positives and genuine vulnerabilities, ensuring accurate results.

Another common issue is the detection of WAF (Web Application Firewall) or IPS (Intrusion Prevention System) systems, which can interfere with SQLMap’s scanning process. SQLMap provides options to bypass these security measures, such as tampering with the request headers or using different HTTP methods. By employing these techniques, you can overcome the obstacles posed by WAF or IPS systems and continue the scan effectively.

Maintaining Security and Preventing SQL Injection

SQL injection vulnerabilities can have severe consequences for organizations, compromising the confidentiality, integrity, and availability of sensitive data. Adopting best practices to prevent SQL injection attacks and maintain security is crucial.

Best Practices for Secure Coding

Following secure coding practices can significantly reduce the risk of SQL injection vulnerabilities. Some best practices include:

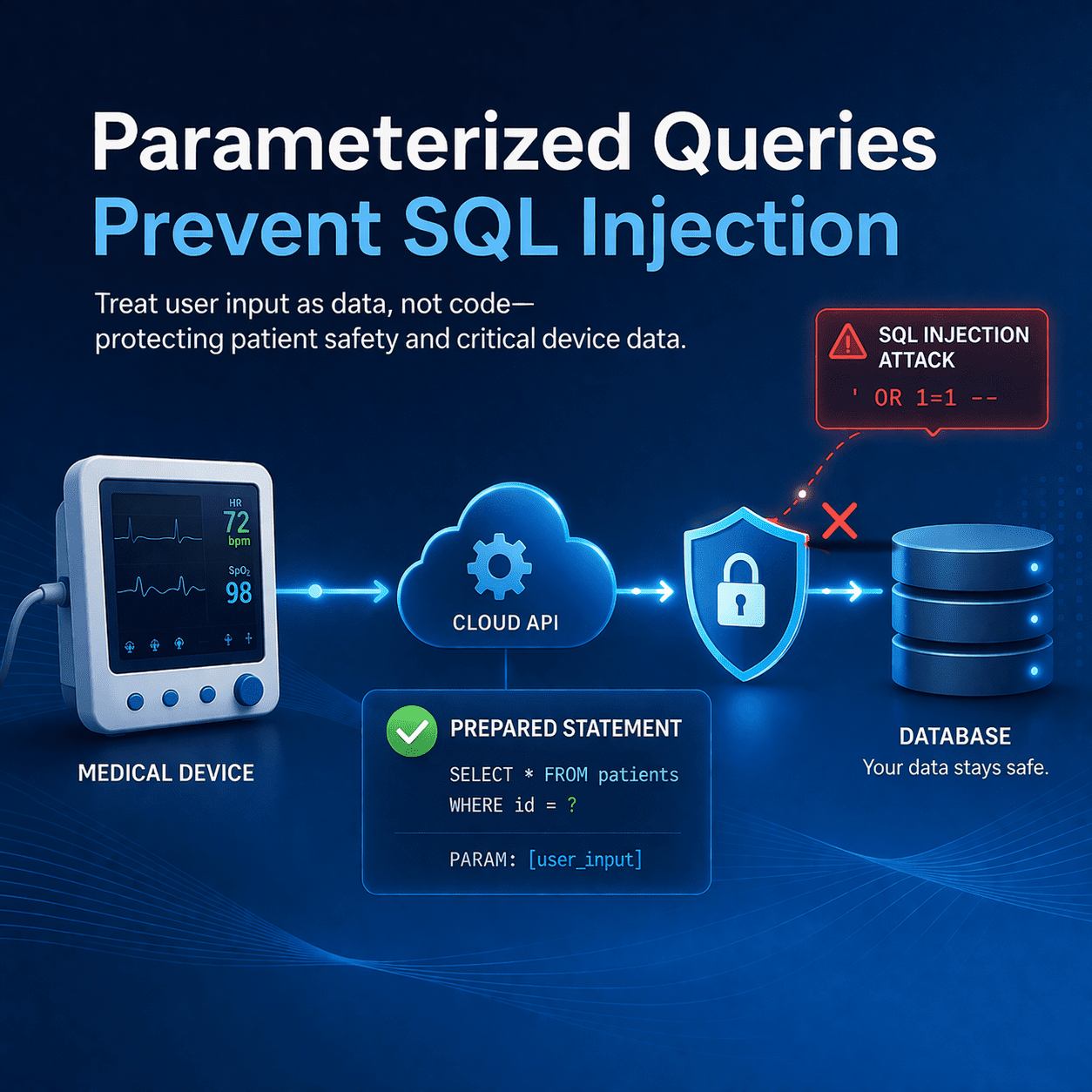

  • Using parameterized queries or prepared statements.
  • Implementing input validation and sanitization.
  • Implementing least privilege access control.
  • Regularly updating and patching software and frameworks.

Regularly Using SQLMap for Security Checks

Regularly using SQLMap to perform security checks on your web applications can help identify and fix SQL injection vulnerabilities before attackers exploit them. By integrating SQLMap into your vulnerability assessment and penetration testing processes, you can proactively ensure the security and integrity of your data.


In this SQLMap tutorial, we have explored the fundamental concepts of SQL injection and its impact on cybersecurity. We have also learned about SQLMap, a powerful tool for automating the detection and exploitation of SQL injection vulnerabilities. By mastering SQLMap’s capabilities and leveraging its advanced features, you can enhance your ability to assess and mitigate SQL injection risks in web applications, ultimately bolstering their security.

Remember, SQL injection vulnerabilities pose a significant threat to organizations of all sizes, and staying informed about the latest attack techniques and prevention strategies is crucial. With SQLMap in your toolkit, you can become a skilled practitioner in SQL injection detection and exploitation, ensuring the security and resilience of your applications and data.

Blue Goat Cyber is here to assist if you want to safeguard your web applications from SQL injection threats and enhance your cybersecurity posture. We are a Veteran-Owned business specializing in a comprehensive range of B2B cybersecurity services, including medical device cybersecurity, penetration testing, and compliance with HIPAA, FDA, SOC 2, and PCI standards. We are dedicated to securing your business against attackers. Contact us today for cybersecurity help, and let us help you fortify your defenses.
